Profile Tools

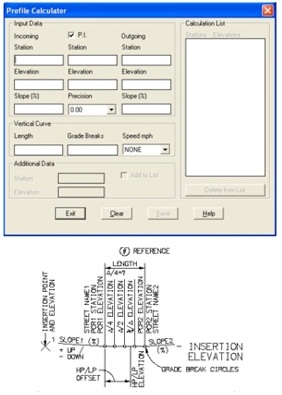

SmartDraft® Profile Tools Help: Profile Tools Examples 1

  • Create a profile from stations and elevations *

  • Create Civil 3D dynamic Profile View labels *

  • Create Civil 3D Crossing Pipe Labels. *

  • Create Civil 3D Pipe Network Structure Labels for RIM and Bottom *

  • Create Civil 3D Pipe Network Single Line Pipe in profile *

  • Create Civil 3D Profile Slope Labels *

  • Create a profile from distances and elevations or slopes

  • Create a profile from digitized planview points and elevations

  • Create profile lines at given slopes

  • Create a profile from points along an alignment

  • Create station and elevation flags *

  • Create cut away pipe symbols

  • Create crossing pipe symbols in the profile

  • Create a curb return profile

  • Create curb return labels

  • Create an arced leader on the profile text layer

  • Create a straight leader on the profile text layer

  • Label the distance between two selected points on the profile text layer

  • Calculate profile slopes, intersections, and vertical curves

* Uses the AutoCAD® Civil 3D® and AutoCAD® Land Desktop horizontal alignment data or uses data entered by the user.

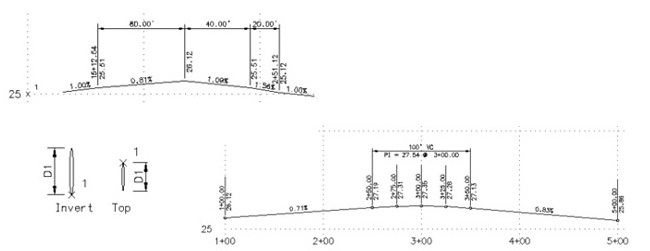

Profile Tools Examples 2
